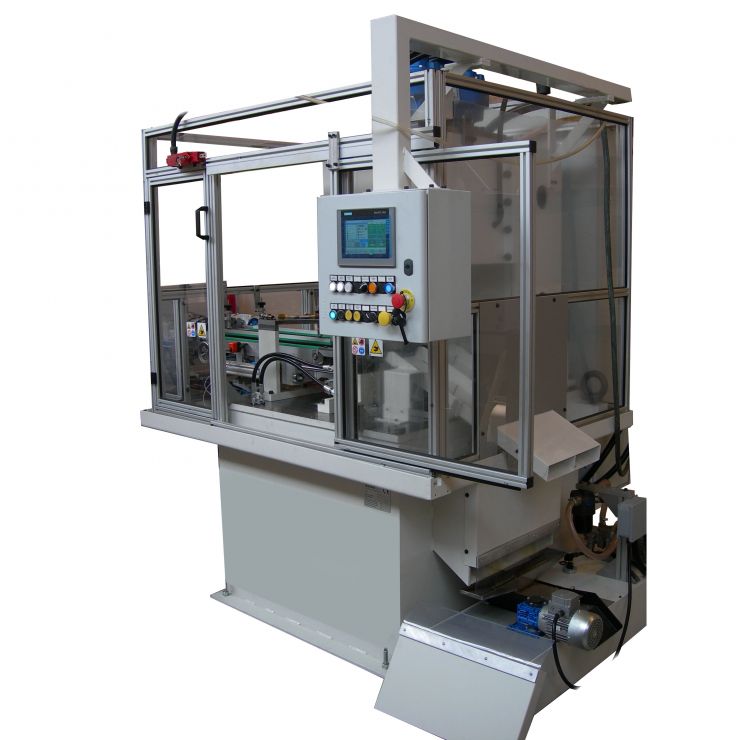

Record automatic special tapping machines for air/oil filter covers raise from the fundamental supposition to allow our most demanding customers to reach their productivity goals. High quality, reduction of wasted time and ease of use: these are the reasons why this machinery is the pride of our company.
Composed by two independent quick-change vertical spindles, equipped with a brushless motor, Record automatic special tapping machines for air/oil filter covers: achieve the highest performance levels. The unrefined pieces are carried to the work phase by an extremely efficient automotive component feeding that it is able to select, align and insert them into the tapping point position. The following locking of the piece can be hydraulic or pneumatic, according to our customer needs.
The strokes and the speed of work are independent of one another and can be typed on the operator panel. They can also be saved, retrieved and adjusted according to the type of working. The tapping torque is controlled by a microprocessor system which permits constant verification of the state of wear of the screw taps obtaining high-quality products. Solutions and applications can always be checkable in order to satisfy any market demand.

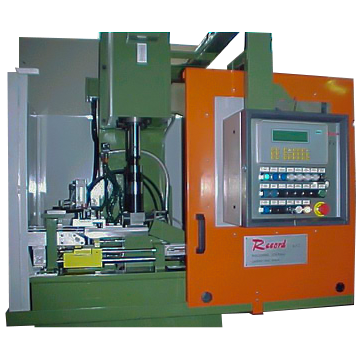

Record FV1 tapping machine
Tapping for removal of filter covers up to 1 "3/4

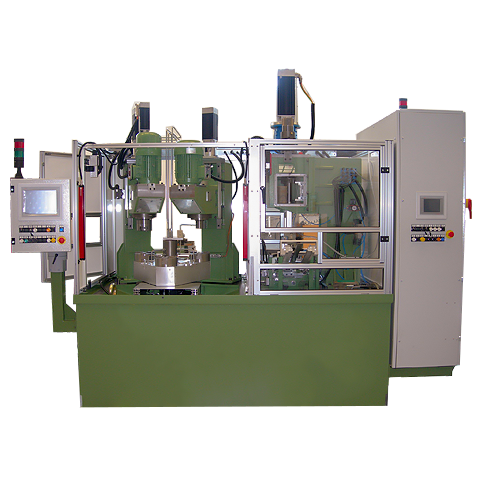

Record FV2 tapping machine
Simultaneous roll tapping of two filter covers up to 1 "3/4

VIDEO
VIDEO
FV1 TECHNICAL INFORMATIONS
TAPPING CAPACITY | UNF | 1" |
HOURLY PRODUCTION (3/4UNF) | pz | 1200/1300 |
WORKING SPEED | g/1' | 5-1150 |
RETURN SPEED | g/1' | 5-1150 |
MOTOR TORQUE (BRUSHLESS) | Nm | 24 |
OPERATING STROKE | mm | 100 |
MANDREL HITCH | DIN | 55050 |
HOPPER CAPACITY | Lt | 700 |
FV2 TECHNICAL INFORMATIONS
TAPPING CAPACITY | UNF | 1"3/4 |
HOURLY PRODUCTION | pz | 1350 |
WORKING SPEED | g/1' | 5-1600 |
RETURN SPEED | g/1' | 5-1600 |
MOTOR TORQUE (BRUSHLESS) | Nm | 150 |
OPERATING STROKE | mm | 120 |
MANDREL HITCH tr36 | DIN | 6327 |
HOPPER CAPACITY | Lt | 700 |
Filter range
